Keywords

Innovation and Invention, Processes and Incentives, Management of Technological Innovation and R&D, Diffusion Processes, Open Innovation.

JEL Classification

O30; O31, O32; O33; O36.

Introduction

This article analyzes the issue of collaboration between innovative small and medium-sized enterprises in Europe. The issue is relevant for its impact on technological innovation and overall investment in research and development in European national systems. In fact, if on the one hand it is certain that technological innovation has a positive effect in terms of gross domestic product, it is also true that this innovation must be carried out by companies. And this is where the question arises. In fact, most businesses in Europe are small and medium-sized. The size of European SMEs does not allow them to create company departments specialized in product innovation, process innovation, digital transformation, nor does it allow them to create real departments for research and development. And yet it is necessary to find methodologies to ensure that SMEs collaborate in innovation as their contribution is necessary to raise the degree of attractiveness of innovation systems at national level. It follows therefore that it is necessary to find methodologies to ensure that SMEs systematize their resources to increase the degree of technological innovation. One of the methodologies to ensure that European SMEs are more collaborative consists precisely in the analysis of the indicator that has been chosen in the following discussion: "Innovative SMEs Collaborating with Others in Europe".

There are various models in the literature that have been proposed to allow SMEs to collaborate in technological innovation, such as models of open innovation and models based on the idea of external knowledge. While it is certainly possible to find a dimension of positive externality in knowledge, it is also necessary that this dimension is not random or left to chance, but rather it is contractualised in the productive relations between SMEs. Furthermore, it should be considered that in general the markets where many SMEs operate are characterized by a very marked competitive orientation and this fact prevents companies from investing in research and development and technological innovation. As a result, investment in technological innovation and research and development is often relegated to companies operating under an oligopoly and monopoly regime.

Finally, there is an international condition that makes it necessary to unlock the contribution to technological innovation and research and development that can be produced through small and medium-sized enterprises. Indeed, in the context of the technological conflict between China and the US, the role of Europe can only be better defined by allowing SMEs to fully unleash their innovative potential. In fact, Europe lags both the US and China in the sense of technological innovation and the big companies alone are not enough to close the gap in terms of knowledge production, patents, and intangible assets. Thus arises the need for Europe to create networks between innovative SMEs to ensure that investment in R&D increases globally, and to develop in SMEs an aptitude for both collaboration and innovation capable of generating profits. relevant outputs both from the point of view of the market and from the point of view of the production of social capital.

The article continues as indicated below: the second paragraph contains a brief analysis of the reference literature, the third paragraph illustrates the econometric model, the fourth paragraph contains the clustering analysis with the k-Means algorithm, the fifth paragraph presents the network analysis model applied to European countries, the sixth paragraph shows the results in terms of machine learning for the prediction with original data, the seventh paragraph refers to the prediction with machine learning algorithms applied to the augmented data, the eighth paragraph concludes , the ninth paragraph contains the bibliography, the tenth paragraph represents in the form of an appendix the metric results obtained with the research methods used.

Literature Review

An analysis of the literature that refers to the role of collaboration in the sense of technological innovation among European SMEs is briefly presented below. It should be considered that the role of technological innovation has been recognized within economic science already starting from the classical theory of economic growth (Solow, 1956). Furthermore, the role of technological innovation, research and development and the knowledge economy in general has also been recognized in the approach of the theory of endogenous growth (Romer, 1994). Furthermore, the role of technological innovation, also in the distinction between the very idea of innovation and invention, was developed by the Austrian economist Joseph Alois Schumpeter (Schumpeter, 1934). Furthermore, the issue of innovation also significantly affects the issue of legislation due to the controversial role that patents, and industrial property has in allowing or limiting the dissemination of scientific and technological discoveries (Boldrin & Levine, 2002). In this general theoretical context, the scientific literature must be inserted which deals more specifically with the role of collaborative SMEs in the sense of technological innovation.

Benhayoun et al. (2020) consider small and medium-sized enterprises that actively participate in collaborative innovation networks. The ability of the individual companies participating in these networks to innovate and acquire the information necessary for growth essentially depends on the specific condition in which the company finds itself, its competitive context, and the ability to translate the innovations acquired within the corporate organizational structure through collaboration. Ioanid et al. (2018) analyze the role of social networks in determining the innovative capacity of small and medium-sized enterprises in Romania. The results of the analysis show that Romanian companies can derive benefits from social networks. However, these advantages are relegated to marketing and market positioning aspects. Romanian companies have little ability to use social networks in the sense of technological innovation.

Jespersen et al. (2018) consider the reasons that push SMEs to collaborate in the direction of innovation using proximity. In fact, companies looking for partners in innovation try to find companies that are similar. The authors analyze four different types of proximity, namely: geographical, cognitive, organizational, and social. In general, the partners of technological innovation are chosen based on geographical proximity. However, companies change their choice criteria also based on the technological and organizational complexity of the collaboration in the sense of innovation. Akinwale (2018) considers the positive relationship between open innovation and the financial performance of companies operating in the oil and gas sector in Nigeria. Zahoor & Al-Tabbaa, (2020) presents an analysis of the literature on the impact of inter-organizational collaboration on the ability of SMEs to innovate. De Noni et al. (2018) analyze the role of collaboration between geographical areas with different levels of development in terms of technological innovation in Europe. The results of the panel analysis show that regions that are more technologically backward gain significant advantages from collaborating with regions that are more technologically advanced. Jasimuddin & Naqshbandi, (2019) they analyze the role of "Knowledge infrastructure Capability" in determining the conditions of efficiency of open innovation they analyze the case of 125 companies operating in France. The data show that the presence of "Knowledge Infrastructure Capability" increases the ability of companies to operate through open innovation models. Del Vecchio et al. (2018) investigate the relationship between big data and open innovation in small and medium-sized enterprises and in big corporations. Radziwon & Bogers (2019) they consider the complex system of relationships that binds a small and medium-sized enterprise to the external environment in the context of open innovation. In fact, on the one hand, SMEs are not able to complete the innovation processes autonomously, on the other hand, they may have difficulties in aligning themselves with the objectives of open innovation systems. Grimsdottir & Edvardsson (2018) consider the case of two companies that practice open innovation models in Iceland. The two companies considered have diversified approaches to open innovation due to their characteristics in terms of technological advancement. The authors tend to demonstrate that while technologically advanced firms prefer inside-out open innovation models, less technologically advanced firms prefer outside-in models. Saastamoinen et al. (2018) analyze the positive relationship between the ability of small and medium-sized enterprises to create forms of inter-organizational collaboration and their ability to be more innovative (Grimaldi, et al., 2021). They analyze the relationship between the ability of small and medium-sized enterprises to collaborate in open innovation and the protection of intellectual property rights. The findings show that firms that have a collaborative intellectual property rights strategy perform better than firms that have a defensive strategy. Zaridis et al. (2021) certify the existence of a positive relationship between collaboration in the sense of innovation and the results in terms of business performance in a case study of 504 companies operating in the agricultural sector. D’Angelo & Baroncelli, (2020) apply a Tobit / Probit model to the analysis of 2591 Italian small and medium-sized enterprises to investigate the existence of a relationship between open innovation and performance. The results show that companies that can create forms of horizontal collaboration in the sense of research and development produce greater outputs in terms of innovation. Collaboration between business and university enhances product innovation. Anderson & Hardwick (2017) propose a sociological analysis of the relationship between open innovation and knowledge management in small and medium-sized enterprises, underlining the role of trust in creating the conditions for collaboration between enterprises in the sense of innovation. Ueasangkomsate & Jangkot (2019) empirically verify the positive effect of collaboration between small and medium-sized enterprises and the industrial sector in increasing the performance in the sense of innovation in Thailand. The ability to produce collaboration between small and medium-sized enterprises is therefore an essential element for increasing innovation at the national level. To this end, it is also necessary to consider the relationships that technological innovation and collaboration among SMEs have in connection with the following factors:

1. The general level of innovation among countries (Leogrande, et al., 2022);
2. The ability of firm to improve sales (Costantiello, et al., 2022);
3. The capability to innovate at firm level (Costantiello, et al., 2022);
4. The production of creative intangibles for industrial purposes (Laureti, et al., 2022);
5. The broadband penetration (Leogrande, et al., 2021);
6. The role of venture capital in financing corporate innovation (Leogrande, et al., 2021);
7. The relevance of human capital (Leogrande & Costantiello, 2021);
8. The presence of foreign doctorate students (Laureti, et al., 2022);
9. ICT training (Laureti, et al., 2022).

As is evident, the possibility of implementing profitable technological innovation models in small and medium-sized enterprises necessarily requires forms of collaboration. However, the ability of small and medium-sized enterprises to collaborate is also connected to the presence of a set of factors concerning human capital, the state of digitization at the country level, and the presence of an orientation that tends to make the construction of social goods prevail. compared to the predatory tendencies of individual companies.

The Econometric Model

We have estimated the following econometric model:

Where i=36¹ and t=[2010;2019]

We find that the Innovative SMEs Collaborating are positive associated with the following variables:

Broadband Penetration: is the percentage of the number of companies with a maximum speed of at least 100 mb / s out of the total number of companies. This indicator is very relevant as the possibility for the European Union countries to activate the benefits deriving from technological innovation and digitization depend above all on the possibility of being connected to the internet. The internet connection, especially if fast, allows you to activate e-commerce and to develop services connected to the digital economy both in public administrations and in private companies. There is therefore a positive relationship between the presence of companies that have fast internet and the presence of small and medium-sized companies that can cooperate. This positive relationship derives from the fact that a very significant part of the collaboration between companies takes place precisely using the Internet and information technologies. In fact, the collaboration between companies that takes place on the issues of technological innovation requires as a minimum requirement the presence of an Internet network infrastructure that can support the technological innovations implemented in collaboration between companies Figure 1.

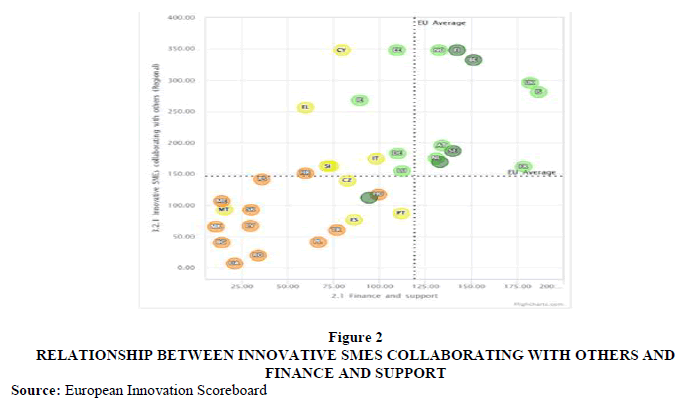

Finance and Support: is a variable made up of three sub-variables, namely: "R&D expenditures public sector", "Venture capital expenditures", "Direct government funding and government tax support for business R&D". Finance and support therefore represent exactly a set of financial resources that can be invested to guarantee support for research and development from both the private and public sectors. It should be considered that there is a positive relationship between the value of the ability of small and medium-sized enterprises to collaborate and the financial support offered to enterprises for research and development. This relationship is also positive since a large part of the funding, especially public, which is assigned to small and medium-sized enterprises for research and development requires enterprises to collaborate through the construction of networks, consortia, and associations among enterprises. It therefore follows that the companies that manage to collaborate through the creation of cooperation contracts aimed at technological innovation and research and development are also able to obtain more financial resources to support the processes of economic growth and an improvement in the positioning of market Figure 2.

Linkages: is a variable consisting of three sub-variables namely "Innovative SMEs collaborating with Others", "Public Private Co-Publications for Million Population" and "Job to Job Mobility of Human Resources in Science and Technology". The presence of linkages is therefore positively associated with the ability of small and medium-sized enterprises to collaborate. Companies that have greater ability to create relationships are also able to generate collaborations that can translate into new products, new services and increase both customers and turnover. It therefore follows that the possibility of creating a context of collaboration between companies in the context of national innovation systems depends on the ability to offer incentives to companies to create relationships that can be transformed into new products and services. In this sense, the presence of forms of systemic collaboration in the context of open innovation, the dissemination of management models of external innovation, and also the reference to models of the "Fab Lab" type may be necessary to develop cooperation between SMEs capable of generating economic value Figure 3.

Non R&D Innovation Expenditure: is a variable that considers the sum of the total expenditure for innovation with the exclusion of both intramural and extra-mural investments in research and development as a percentage of the total turnover value for all companies. This item also includes investments in equipment, machinery, and intangible assets such as patents and licenses. There is therefore a positive relationship between the value of investment in innovation net of R&D expenditure and the ability of small and medium-sized enterprises to collaborate in technological innovation. Positive relationship that can be understood considering that collaborating companies in general must also invest financial resources in the tangible and intangible infrastructures that allow the company to undertake collaborations. In fact, in the context of the knowledge economy it is necessary that collaboration takes place between companies that have levels of knowledge capital and the possibility of using intangible and material resources that are shared with the aim of producing new services and new products Figure 4.

Employment Share High and Medium High-Tech Manufacturing: is the percentage of employees in the medium and high technology manufacturing sectors. There is therefore a positive relationship between the ability of small and medium-sized enterprises to collaborate and the value of employees in the medium and high-tech manufacturing sectors. This relationship derives from the fact that the presence of qualified human capital in enterprises, especially manufacturing, increases the ability to create the conditions for the construction of collaboration systems between small and medium-sized enterprises. Human capital is therefore necessary to create collaboration structures between companies. In particular, the fact that these operators are present within the manufacturing sector means that the manufacturing sector is more attentive both to the dimension of technological innovation and to the dimension of collaboration between companies. In fact, although technological innovation is transversal between the manufacturing sector and the service sector, it appears that the structure of manufacturing-industrial enterprises is more sensitive to technological innovation and research and development thanks also to the size of human capital Figure 5.

We also find that the level of innovative SMEs Collaborating is negatively associated with the following variables:

1. Venture Capital: It is an indicator that considers the risk capital expenditures in companies. The investment in risk capital represents a tool to support companies that face significant risks to introduce significant technological innovations into the market. It should be considered that there is a negative relationship between the presence of venture capital and the value of innovative SMEs collaborating with others. This negative relationship is since venture capitalism is generally a very aggressive structure towards the ownership of innovative SME companies and that therefore companies are oriented to seek their top-down market positioning regardless of the horizontalistic collaborations that may be generated because of collaboration between companies. In fact, venture capital tends to ensure that the company develops products, services, patents in an exclusive, private way, with the aim of selling the outputs and not sharing them with third-party companies that are considered as threatening and potential competitors.

2. Foreign Controlled Enterprises Share of Value Added: considers the added value of companies that are under the control of a foreign parent. There is a negative relationship between the ability of small and medium-sized enterprises to collaborate in technological innovation and the percentage of enterprises that are controlled by a foreign holding. This relationship may be since a foreign-controlled company may have little aptitude for investing in collaboration with local small and medium-sized enterprises and may have little interest in creating a structure of innovation and widespread knowledge among companies in a certain geographical area or of a certain sector. Furthermore, it must be considered that companies that are acquired by foreign counterparties tend to grow significantly in the market and it is not certain that they will remain in the category of small and medium-sized enterprises. In fact, the companies that operate in a certain country being controlled by foreign companies have the possibility of accessing economies of scale and international supply chains.

4. Population Size: represents the resident population in a certain country. It is necessary to consider that there is a negative relationship between the value of the resident population and the value of companies able to collaborate in technological innovation. This condition indicates that with the growth of the population the number of companies that are willing to collaborate decreases. To better understand this relationship, it is necessary to consider that most of the countries where companies have a high capacity for innovation are sparsely populated countries.

5. Private Co-Funding of Public R&D Expenditures: represents the aggregate of R&D expenditure in the public sector and in the education sector which is financed by the private sector. It is an indicator that measures the cooperation between the public and the public. Private investment in the research and development of the university system should increase the orientation of technological innovation in the short term to serve the interests of the industry. There is a negative relationship between the value of private investment in public institutions and the ability of small and medium-sized enterprises to collaborate in technological innovation. This negative relationship is since private financing of public research and development does not necessarily involve collaboration between small and medium-sized enterprises. In fact, this financing is generally carried out by a single company that seeks a relationship with the university system to develop its own products or services without involving other companies.

6. Public-Private Co-Publications: is the number of scientific publications characterized by public-private collaboration. This indicator considers the links between the public sector and the private sector in terms of publication production. However, this collaboration between the public and the private sector is negatively associated with the ability of small and medium-sized enterprises to collaborate in technological innovation. This negative relationship means that the collaboration between the public and the private sector does not necessarily also involve small and medium-sized enterprises. In fact, it is much easier for a large company that may already have a research and development department to collaborate with public bodies to produce outputs that can be evaluated in terms of research and development. Small and medium-sized enterprises, on the other hand, may have greater difficulties in collaborating with the public and certainly it may be even more difficult for consortia of small and medium-sized enterprises to establish partnerships with the public for the related bureaucratic-administrative issues and for the scarce economic and financial incentives.

Clusterization with k-Means Algorithm Optimized with the Silhouette Coefficient

A clustering was then carried out using the k-Means algorithm to verify the presence of groupings among European countries by value of innovative collaborative companies. The choice of the optimal number of clusters was achieved through the application of the following criteria, namely:

1. Maximization of the value of the Silhouette coefficient for clusters;
2. Value of the Silhouette coefficient of each element of every cluster greater than 0.

By applying these two rules, four different clusters have been identified as follows:

1. Cluster 1: Poland, Latvia, Malta, Bulgaria, Hungary, Italy, Spain, Ukraine, Romania, North Macedonia, Turkey, Serbia, Slovakia, Portugal, Croatia;
2. Cluster 2: Ireland, Czechia, France, Sweden, Slovenia, Cyprus, Denmark, Germany, Montenegro, Luxembourg, Netherlands, Lithuania, Switzerland;
3. Cluster 3: Belgium, United Kingdom, Iceland;
4. Cluster 4: Finland, Greece, Estonia, Norway, Austria

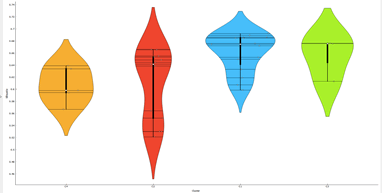

It is possible to establish an analysis of the ordering of the clusters considering the value of the median of the observed variable or the ability of European small and medium-sized enterprises to collaborate with others. The analysis shows that the median value of the countries of cluster 4-C4 is equal to 347,832, the median value of the countries of cluster 3-C3 is equal to 295,538, the median value of the countries of cluster 2-C2 is equal to 162,477, the median value of cluster 1-C1 is equal to 76,397. Therefore, the following ordering of the clusters in terms of median value derives, that is: C4 = 347,832> C3 = 295,538> C2 = 162,477> C1 = 76,397. In other words, it follows that the ability of companies in cluster 4 countries to collaborate in technological innovation is approximately 1.17 times higher than the corresponding value of companies in cluster 3-C3 countries, 2.14 times higher than those of cluster 2-C2 countries, and 4.55 times higher than those of cluster 1-C1 countries. If we look at the geographical distribution of the countries belonging to the cluster, it appears that the countries of Northern Europe have much higher levels of collaboration between companies than those of the countries of Southern Europe. This contrast between Northern and Southern Europe is not so much to be traced back to capitalist factors, although these are certainly relevant, but rather to sociological and cultural supporters in a broad sense. In fact, in the countries of northern Europe human capital and social capital tend to be much more widespread than in the countries of southern Europe which are characterized by phenomena of individualism and zero-sum play between public and private goods. It follows that the inability of small and medium-sized enterprises in Southern Europe to collaborate in building strong networks and links aimed at technological innovation ends up having a negative effect on the entire technological innovation capacity of the countries considered. These factors, being of a sociological-cultural nature, can hardly be changed in the short term through economic policies, although there are still possibilities for action. For example, European policy makers could make incentive plans aimed at small and medium-sized enterprises that are able to collaborate and create networks, consortia, associations, and partnerships. Through these incentives it could be possible, through interventions external to the socio-cultural and institutional dimension of the companies, to introduce virtuous phenomena of collaboration between the companies in technological innovation Figure 6.

Network Analysis

A network analysis was carried out below to verify whether there are any network structures and particular two-way links between the historical series dynamics of the countries considered in terms of the ability of innovative small and medium-sized enterprises to collaborate. The analysis was carried out using the Manhattan distance. The analysis shows the presence of 36 nodes, 44 edges, with an average degree value of 2.44 and an amount of density equal to 0.06984. Three different network structures were found, two of which are bi-univocal and one with three elements. The three-element mesh structure is shown below:

1. Switzerland is connected with Luxembourg through a link which has a value of 0.22;
2. Luxembourg is linked to Switzerland through a link of 0.22 and to Montenegro with a value of 0.31;
3. Montenegro is connected to Luxembourg with a link with a value of 0.31.
4. The two one-to-one relationships are indicated below:
5. Denmark is connected to Slovenia with a link with a value of 0.34;
6. Romania is connected to Ukraine with a link having a value of 0.22.

Obviously, these links are simply relations that exist in the internal dynamics of the development of countries' data and do not indicate any kind of cause-and-effect relationship among countries in terms of improving the ability of small and medium-sized enterprises to collaborate in technological innovation Figure 7.

Machine Learning and Predictions

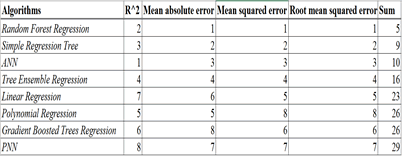

A comparison was then made with eight different machine learning algorithms for the edition of the future value of the observed variable, i.e. the collaboration between European small and medium-sized enterprises in technological innovation. The algorithms have been analyzed in their ability to maximize R-squared and minimize the following statistical errors, namely: "Mean absolute error", "Mean squared error", "Root mean squared error". 70% of the data was used for learning the algorithms while the remaining 30% was used for the actual prediction. Based on the application of these criteria, the following ranking of the algorithms was obtained based on their predictive capacity, that is:

1. Random Forest Regression with a payoff value of 5;
2. Simple Regression Tree with a payoff value of 9;
3. ANN-Artificial Neural Network with a payoff value of 10;
4. Tree Ensemble Regression with a payoff value of 16;
5. Linear Regression with a payoff value of 23;
6. Polynomial Regression and Gradient Boosted Trees Regression with a payoff value of 26;
7. PNN-Probabilistic Neural Network with a payoff value of 29.

Based on the application of the Random Forest Regression algorithm it was therefore possible to make the following predictions:

1. Austria with an increase from a value of 195.368 up to a value of 327.021 or a variation equal to a total of 131.653 units equal to a value of 67.38%;
2. Belgium with a decrease from an amount of 332.09 units up to a value of 279.49 units or equal to a value of -52 units equal to a value of -15.83%;
3. Bulgaria with a decrease from an amount of 40.13 units up to a value of 36.72 units or equal to a variation of -3.41 units equal to a value of -8.49%;
4. Switzerland with an increase from an amount of 111.799 units up to a value of 135.08 units or equal to a variation of 23.28 units equal to a value of 20.83%;
5. Cyprus: with a decrease from an amount of 347.83 units up to a value of 192.342 units or equal to a value of -155.34 units equal to a variation of -44.70%;
6. Czechia with an increase from an amount of 139.009 units up to a value of 220.356 units or equal to a value of 81.34 units equal to an amount of 58.51%;
7. Germany with a decrease from an amount of 182.65 units up to a value of 154.69 units or equal to a value of -27.96 units equal to an amount of -15.31%.
8. Denmark with an increase from an amount of 169.12 units up to a value of 207.74 units or equal to a value of 38.62 units equal to an amount of 22.83%;
9. Estonia with a decrease from an amount of 347.832 up to a value of 292.699 units equal to a variation of -55.133 units equal to a variation of -15.85%;
10. Greece with a decrease from an amount of 256.109 units up to an amount of 251.547 units or equal to a value of -4.56 units equal to a variation of -1.78%;
11. Spain with an increase from an amount of 76.38 units up to a value of 106.62 units or equal to a variation of 30.22 units equal to a variation of 39.55%;
12. Finland with a decrease from an amount of 347,832 units up to a value of 188,446 units or equal to a value of -159,386 units equal to a variation of -45.82%;
13. France with an increase from an amount of 161,656 units up to a value of 171, 553 units or equal to a value of 9,897 units equal to an amount of 6.12%;
14. Croatia with a decrease from an amount of 151.156 units up to a value of 121.987 units or equal to a variation of -29.269 units equal to a value of -19.29%;
15. Hungary with a decrease from a change of 116.92 units up to a value of 96.13 units or equal to a value of -20.789 units equal to an amount of -17.78%;
16. Ireland with a decrease from an amount of 267.710 units up to a value of 172.953 units or equal to a variation of -94.75 units equal to an amount of 35.39%;
17. Iceland with an increase from an amount of 280.69 units up to a value of 294.42 units or equal to a variation of 13.73 units equal to a variation of 4.89%;
18. Italy with a decrease from an amount of 174.26 units up to a value of 83.76 units or equal to an amount of -90.50 units equal to a value of -51.93%;
19. Lithuania with an increase from a value of 162,404 units up to a value of 173.45 units or equal to a variation of 11.05 units equal to an amount of 6.80%;
20. Luxembourg with an increase from a value of 162,404 units up to a value of 173,456 units equal to an amount of 11,052 units or equivalent to a value of 6.80%;
21. Latvia with a variation from 66.93 units up to a value of 103.551 units or equal to a variation of 36.62 units equal to 54.71%;
22. Montenegro with an increase from an amount of 106,482 units up to a value of 125,950 units or equal to a value of 19,468 units equal to a value of 18.28%;
23. North Macedonia with an increase from an amount of 65.45 units up to a value of 94.06 units or equal to a variation of 28.61 units equal to an amount of 43.70%;
24. Malta with an increase from a value of 92.70 units up to a value of 110.63 units or equal to a value of 17.92 units equal to a value of 19.34%;
25. Netherlands with an increase from an amount of 174.832 units up to a value of 215.74 units or equal to an amount of 40.90 units equal to 23.39%;
26. Norway with a decrease from an amount of 347.83 units up to a value of 195.89 units or equal to an amount of -151 units equal to a value of -43.68%;
27. Poland with an increase from an amount of 40.83 units up to a value of 67.28 units or equal to a value of 26.44 units equal to a value of 64.76%;
28. Portugal with an increase from an amount of 86.80 units up to a value of 94.56 units or equal to a variation of 7.76 units equal to an amount of 8.94%;
29. Romania with an increase from an amount of 19.68 units up to a value of 21.28 units equal to a value of 1.60 units equal to 8.14%;
30. Serbia with a value from an amount of 141,351 units up to a value of 111,392 units or equal to a variation of -29.59 units equal to a variation of -21.19%;
31. Sweden with a decrease from an amount of 186.76 units up to a value of 177.78 units or equal to a variation of -8.97 units equal to a variation of -4.80%;
32. Slovenia with an increase from a value of 162.47 units up to a value of 229.85 units or equal to a variation of 67.37 units equal to a value of 41.46%;
33. Slovakia with an increase from an amount of 92,450 units up to a value of 95.24 units or equal to a variation of 2.79 units equal to a variation of 3.02%;
34. Turkey with a variation of 60.13 units up to a variation of 88.98 units or equal to a variation of 28.85 units equal to a variation of 47.97%;
35. Ukraine with an increase from an amount of 6.59 units up to a variation of 31.59 units or equal to a variation of 24.99 units equal to a variation of 378.86%;
36. United Kingdom with a decrease from an amount of 295.53 units up to a value of 294.52 units or equal to a value of -1.01 units equal to -0.34%.

On average, using the Random Forest Regression algorithm it is possible to predict a reduction from 165.62 units up to 158.28 units or equal to -7.3 units equivalent to -4.3% of the trend of the variable considered, i.e., the capacity of small and medium-sized enterprises to collaborate in innovation Figure 8.

Prediction Using Machine Learning Algorithms with Augmented Data

A further prediction was then made through augmented data. In other words, the results of the prediction analyzed in the previous paragraph have been added to the time series. Increased data were thus obtained. Eight different machine learning algorithms aimed at prediction were used to analyze the augmented data. The algorithms were analyzed based on the ability to maximize R-squared and essential statistical errors i.e. "Mean absolute error", "Mean squared error", and "Root mean squared error". The algorithms were trained with 70% of the available data while the remaining 30% were used for the actual prediction.

Therefore, the following ranking of the algorithms in terms of performance was derived Figure 9, that is:

1. Random Forest Regression with a payoff value of 4;
2. Linear Regression with a payoff of 8;
3. Tree Ensemble Regression with a payoff equal to 12;
4. Polynomial Regression with a payoff value of 18;
5. ANN-Artificial Neural Network with a payoff value of 20;
6. Gradient Boosted Tree Regression with a payoff value of 24;
7. PNN-Probabilistic Neural Network with a payoff value of 26;
8. Simple Regression Tree with a payoff value of 32.

Therefore, by applying the best performer algorithm or the Random Forest Regression to the augmented data, the following predictions were made, namely:

1. Cyprus with an increase from an amount of 192.34 units up to a value of 227.77 units or equal to a variation of 35.43 units equal to a value of 18.42%;
2. Finland with an increase from a value of 188.44 units up to a value of 254.68 units or equal to a variation of 66.24 units equal to a value of 18.42%;
3. France with an increase from an amount of 171.553 units up to a value of 181.08 units equal to a value of 9.53 units equivalent of 5.55%;
4. Italy with an increase from an amount of 83.76 units up to a value of 105.55 units or equal to a value of 21.79 units equal to a variation of 26.019%;
5. Lithuania with an increase from an amount of 173,456 units up to a value of 157,855 units or equal to a variation of -15.6 units equal to a value of -8.99%;
6. Norway with a decrease from an amount of 195.897 units up to a value of 184.82 units or equal to a variation of -11.07 units equal to a variation of -5.65%;
7. Romania with an increase from a value of 21.288 units up to a value of 54.36 units or equal to a variation of 33.07 units equal to an amount of 155.36%;
8. Slovenia with a decrease from an amount of 229.85 units up to a value of 216.67 units or equal to a value of 33.07 units equal to a variation of 155.36%;
9. Slovakia with an increase from an amount of 229,854 units up to a value of 216,674 units or equal to a variation of -13.18 units equal to -5.73%;
10. Ukraine with an increase from an amount of 31.59 units up to a value of 54.36 units or equal to a value of 22.77 units equal to 72.08%;
11. United Kingdom with a decrease from an amount of 294.525 units up to a value of 289.262 units or equal to a value of -5.26 units equal to a value of -1.78%.

On average, the predicted value with the increased data and the Random Forest Regression for the countries considered is expected to grow from an amount of 152.542 units up to a value of 166.62 units or equal to a value of 14.08 units equal to a value of 9.23% Figure 10.

Finally, by comparing the value of the R-square and of the statistical errors of the prediction made with the original data and the prediction made with the increased data, there is a significant improvement in the prediction with the increased data. In fact, it is possible to verify both an increase in the R-squared value and a reduction in statistical errors. Specifically, it is possible to check the following improvements:

1. R-squared: growth from 0.03 to 0.91 with an absolute change of 0.88 units and a percentage change of 2660.9%;
2. Mean Absolute Error with a reduction from 0.18 to 0.054 units or equal to -0.132 units equal to -70.884%;
3. Mean Squared Error with a reduction from 0.074 to 0.0064 units or equal to a variation of -0.068 units equal to -91.34%;
4. Root Mean Squared Error with a reduction from 0.27 units down to 0.08 units or equal to -0.19 units equal to -70.58%.

Overall, taking the average of the three statistical errors alone, there is a reduction from 0.177 units up to 0.046 units or equal to -0.131 units equal to -73.58%. It follows that the prediction with augmented data is more efficient than the prediction with the original data thanks to a reduction of statistical errors considered equal to an average of 73.58%.

Conclusions

Collaboration between small and medium-sized enterprises in the sense of technological innovation is a strategic factor for the success of innovation systems at national level. Europe appears to be lagging in the production of intangible goods in the context of the tech war between the US and China. The development of economic policies capable of allowing greater collaboration between small and medium-sized enterprises in the sense of technological innovation can allow unlocking an innovation potential that could generate a positive effect in terms of economic growth and convergence between European regions. However, the ability of companies to collaborate depends not only on the presence of adequate human capital, financial capital, networks, and technologies, but also on the presence of human capital. In fact, as the data show, collaboration between SMEs in the sense of innovation is easier in countries where there is more social capital, while it is less widespread in countries that show a more individualistic orientation. In this sense, economic policies should also offer incentives to remove the individualistic culture, present above all in Southern Europe, and orient companies towards a more prosperous and confident collaboration in the sense of innovation.

¹ Countries are: Austria, Belgium, Bulgaria, Croazia, Cyprus, Czechia, Denmark, Estonia, Finlandia, France, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lithuania, Luxembourg, Malta, Montenegro, Netherlands, Norway, Poland, Portogallo, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, UK.
